Installation Manuals

All information needed for the correct installation of your Merus Ring.

Contact us

Manuals to read and watch

The installation of the Merus Ring is very simple. It can therfore usually be done by the customer himself.

You receive the ring as two aluminium ring halves held together by two screws.

After you have opend the screws, you can simply mount the Merus ring around the water pipe.

All you need is an Allen key and some insulating tape.

Of course, you will receive a detailed description from us with your delivery. If you already want to take a look, you can also find the manuals here.

Measurements

The Merus Ring is available in different sizes.Merus Ring Measurements

Which size you need depends on circumference or diameter of your pipe. Depending on your application there are different Rings for bigger flow rates. Standard - Industrial - HCI (High Capacity Industrial). Within our consultation concerning your application we will suggest the Rings suitable for your needs.

The following table shows the most popular measurements in smaller applications. For bigger pipe diameters just contact us. We have Rings up to 24'' on stock. Individual manufacturing of rings up to 72'' (about 2 m) is possible.

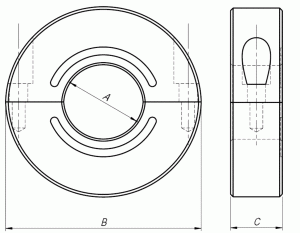

Dimensions in mm Diameter inside  (A) Diameter outside (B) Height (C)
3/4 Zoll 28  75 25
1 Zoll 35  75 25
1 1/4 Zoll 43  75 25
1 1/2 Zoll 49  100 25
2 Zoll 61  100 25

The following link guides you to a short explanation how to identify the pipe diameter.

Printable Measuring Tape
